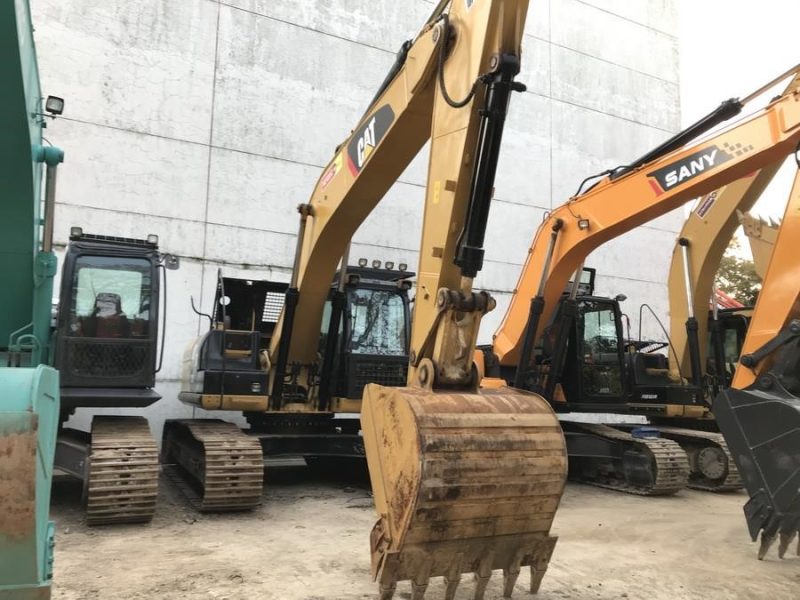

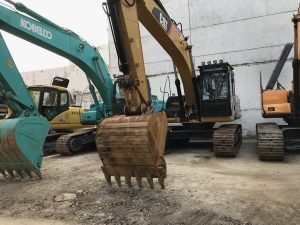

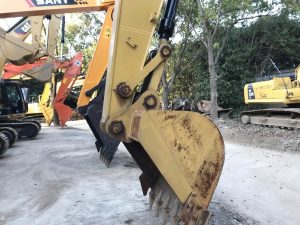

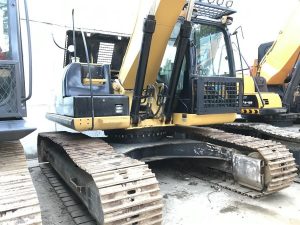

2013 CATERPILLAR 323D

Brand:Caterpillar
Model number:323DL
Engine model:Caterpillar C6.4ACERT
Place of origin:Japan
Max.travel speed:5.6km/h
Warranty:Six months
Net power:110kw
Swing speed:10.5rpm
Operating weight:23000kg
Displacement:6.4L
Fuel capacity:410L
Tail swing radius:2750mm
Ground clearance:455mm
Overall length:9460mm
Overall width:2980mm
Overall height:3030mm
Cab height:2950mm
Track gauge:2380mm
Shoe size:600mm
Bucket capacity:1.19m3
Max. digging radium:9850mm
Max. digging depth:6720mm
Max. digging height:9490mm
Max. dumping height:6490mm
Max. Reach along ground:9860mm
Max. vertical wall digging depth:5690mm
Location:Shanghai
