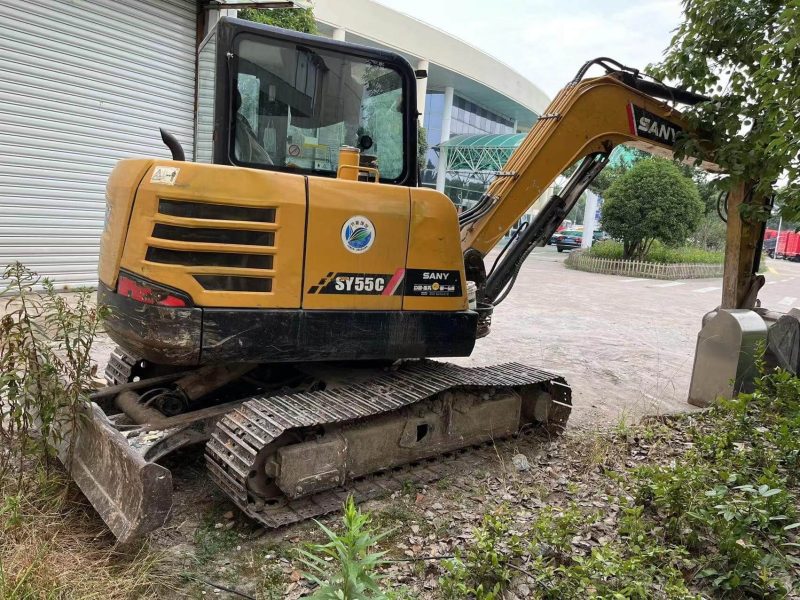

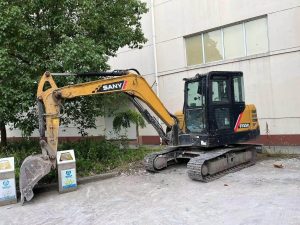

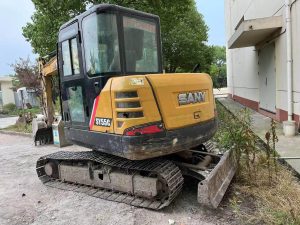

2021 SANY SY55C

Key Parameters：
Engine Model:Isuzu 4JG1
Engine power:36 kW /2100rpm
Engine Displacement :3L
Max torque: 195N•m/rpm
Operating Weight:5780kg
Length of whole machine:5915mm
Width of whole machine:2025mm
Height of whole machine:2560mm
Bucket Digging Force: 45kN
Arm Digging Force:33kN
Standard Boom:3m
Standard Stick:1.55m
Std.Bucket:0.23m³
Max Digging Height:5610mm
Max Digging Depth:3830mm
Max Digging Radium:6070mm

Faster Operating Speed
A quick return line is added to the arm oil cylinder circuit, considerably improving the operating efficiency at low energy consumption.

Safe and Comfortable Operating Environment
The newly-designed cab with much room and larger windows provides you with a wider view.Equipped with excellent sealing, the cab is free from dust, rain, and noise that effectively reduce the fatigue of operator.

Reinforced Boom
The side plates are thicker than before and the ear plates are redesigned to reduce stress at the bending. The boom has stood the durability test and field (soil and rock mixture) digging test.
